Effects of Pellet Heating Time on the Physical Properties of Vacuum-puffed Yukwa

Xiao-jun Shen1, Xiao-yu Li1, Gi-Hyung Ryu2,*
Author Information & Copyright
1Coconut Research Institute, Chinese Academy of Tropical Agriculture Sciences, China
2Department of Food Science and Technology, Kongju National University
*Corresponding author: Gi-Hyung Ryu, Department of Food Science and Technology, Kongju National University, Yesan, Choongnam 340- 800, Korea Phone: +82-41-330-1484; Fax: +82-41-335-5944 ghryu@kongju.ac.kr

© Korean Society for Food Engineering. This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: May 6, 2015; Revised: Jul 8, 2015; Accepted: Jul 16, 2015

Abstract

Experimental design with pellet heating time of 1.00, 1.33, 1.67, 2.00, 2.33, 2.67, 3.00, 3.33, 3.67, and 4.00 min was studied to investigate the effects of pellet heating time on the physical properties (expansion ratio, density and breaking strength) of vacuum-puffed Yukwa. The size and shape of vacuum-puffed Yukwa varied with respect to the pellet heating time.As pellet heating time increased, a values and b values tended to increase. The maximum expansion (4.626) with the lowest bulk density (0.112) was obtained at 3.33 min heating time, whereas the minimum expansion (2.954) with the highest bulk density (0.208) was found at 1 min. The breaking strength of vacuumpuffed Yukwa decreased significantly as the pellet heating time increased. Overall, the heating time had significant impacts on the physical properties of vacuum-puffed Yukwa.

Keywords: pellet heating time; physical properties; vacuum-puffed Yukwa

Introduction

Yukwa, a Korean traditional oil-puffed snack made of steeping waxy rice, has long been consumed as a popular snack due to its soft texture and unique taste. The quality of traditional Yukwa depends on the process conditions, such as the steeping period of the waxy rice, milling method, conditions of pounding, drying and frying (Shin et al., 1990). However, it contains high amount of fat, which is harmful for human health. Therefore, there is a need to develop non-deepfried Yukwa products and to increase consumer interests in eating these Yukwa products.

Non-deep-fried Yukwa has been explored using convection oven method (Lee et al., 2008), microwave oven method (Choi et al., 2000; Lee et al., 2008), far infrared ray electrical roaster method (Yang et al., 2008) and air puffing method (Shin et al., 1990). Yukwa made from vacuum puffing process has also been studied in recent years. Yu & Ryu (2010) suggested that the optimum condition of vacuum puffing machine for the production of vacuum-puffed Yukwa was 120 ° C heating temperature, 4 min preheating time and 5 min puffing time. With vacuum-puffing conditions of 3 min heating time and 2 min puffing time, pellets with about 25% moisture content showed higher expansion ratio, lower density and lower breaking strength (Shen et al., 2011). Moreover, with vacuum-puffing conditions of 3 min heating time and 2 min puffing time, extruded pellets (Shen et al., 2013) and pellets added with green tea powder (Shen et al., 2014) were successfully puffed and studied.

During vacuum puffing, the machine heats the waxy rice pellet and generates superheated steam creating high internal pressure inside the pellet. This causes the expansion of product and forms a porous structure. The driving force for expansion has been hypothesized to be the vaporization of water which generates the superheated steam necessary for expansion (Altan, 2014). During heating, starch matrix in the presence of water undergoes a phase transition from a glassy to a rubbery state that allows expansion and formation of the final structure (Boischot et al., 2003). The degree of gelatinization affected the puffing as in case of the heating time before vacuum puffing. At sufficient moisture and elevated temperature, hydrothermal treatment resulted in changes of rice starch like granule swelling, loss of birefringence and disruption of starch granule (Lai & Cheng, 2004). Modification of starch using different pretreatments before microwave expansion leads to a better quality product. However, few investigated the influence of pellet heating time in the vacuum puffing machine on the characteristics of vacuum-puffed Yukwa. Therefore, the objective of this study was to investigate the effects of pellet heating time on physical properties of vacuum-puffed Yukwa, and to optimize the manufacturing process of vacuum-puffed Yukwa.

Materials and Methods

Materials

Waxy rice, obtained from a commercial source in Korea, was washed and steeped in water at 30 ° C for 3 days. After draining for 12 h over a sieve, the waxy rice was pulverized with a roll mill (Sinpoong ENG. Ltd., Daegu, Korea) for two times and stored in a refrigerator at 2 ° C until use.

Preparation of vacuum-puffed Yukwa

The milled waxy rice was steamed for 60 min by using a steam cooker (Daechang stainless ENG. Ltd., Seoul, Korea), then the resulting dough was punched at mode 3 for 15 min with a KM 400 screw kneader (KENWOOD Ltd., London, UK). After cooling at 2 ° C for 3 h, the dough was cut into small pieces with an average dimension of approximately 4 cm × 1 cm × 0.5 cm (length × width × thickness) and dried in a hot air oven at 50 ° C for 6.5 h. The dried pellets (called bandegi) were kept at 2 ° C for 2 d before puffing by vacuum puffing machine. Before 2 min puffing time, the vacuum puffing process was performed at heating time of 1.00, 1.33, 1.67, 2.00, 2.33, 2.67, 3.00, 3.33, 3.67, 4.00 min.

Expansion ratio

Expansion ratio was determined by the volume ratio of vacuum-puffed Yukwa and pellets. The volume of vacuumpuffed Yukwa and pellets was determined using a seed displacement method. Each essay was the mean of 10 repetitions.

ER = V y V p

ER: Expansion ratio

Vy: Volume of vacuum-puffed Yukwa

Vp: Volume of pellet

Density

Density of expanded pellets was determined using the seed displacement method with millet seed. Density of the vacuumpuffed Yukwa was calculated by dividing its determined volume by the mass. Mean of 10 repetitions from each test was used to Calculate the average value.

Ρ y = M M + M m M 1 Ρ m

ρy: Density of vacuum-puffed Yukwa (g/cm 3 )

ρm: Density of millet (g/cm 3 )

M: Mass of Yukwa (g)

Mm: Mass of millet in cup (g)

Ml: Mass of millet and Yukwa in cup (g)

Breaking strength

The texture of vacuum-puffed Yukwa was evaluated using the Sun Rheometer (Compac-100 II, Sun Sci. Co., Tokyo, Japan). After setting the vacuum-puffed Yukwa on top of 2 cm wide platform, the sharp-edged probe (0.01 mm) was lowered at a speed of 120 mm/min with a 10-kg load cell. The breaking strength was calculated. The results were the average of 10 measurements.

F br = F m S

Fbr: Breaking strength (N/m 2 )

Fm: Maximum force during the cutting of vacuum-puffed Yukwa (N/m 2 )

S: Cross-sectional area of vacuum-puffed Yukwa (m 2 )

Color parameters

The darkest points of the surfaces of vacuum-puffed Yukwa were measured using a Chroma meter (CR-300, Minolta, Osaka, Japan). The color parameters L (black to white), a (redness to greenness), b (yellowness to blueness) were recorded separately. Each essay was the mean of ten repetitions.

Statistical analysis

All statistics were analyzed using SPSS version 16.0. Analysis of variance (ANOVA) was performed with Ducan’s multiple-range test to Compare treatment means.

Results and Discussion

Statistical analysis

Correlation coefficients between pellet heating time and physical properties of vacuum-puffed Yukwa were shown in Table 1. Pellet heating time was well correlated with expansion ratio (r = 0.509, p<0.01), density (r = -0.554, p<0.01), breaking strength (r=-0.702, p<0.01), color L (r=-0.213, p<0.01), color a (r=0.746, p<0.01), and color b (r=0.836, p<0.01). Expansion ratio was inversely related to density (r=- 0.731, p<0.01) and breaking strength (r=-0.588, p<0.01), while density was positively correlated to breaking strength (r=0.531, p<0.01). High expansion led to low density and breaking strength. As indicated by Limón-Valenzuela et al (2010), products with a higher expansion formed bubbles of air with thin walls, resulting low cutting forces. High density product naturally offers high hardness evident by high correlation between product density and hardness. Increase in expansion resulted in pores in the structure due to formation of air cells and the surface appeared porous and hence decreased hardness (Altan, 2014). On the other hand, color L was inversely related t° Color a (r=-0.321, p<0.01) and color b (r=- 0.218, p<0.01), while color a was positively correlated to Color b (r=0.806, p<0.01). Similar results were also reported by Ascheri et al. (1995) and Shen et al. (2013).

Table 1. Correlation coefficients between pellet heating time and physical properties of vacuum-puffed Yukwa
Expansion ratio Density (g/cm3) Breaking strength (N/m2) L a b
Pellet heating time 0.509** -0.554** -0.702** -0.213** 0.746** 0.836**
Expansion ratio 1 -0.731** -0.588** 0.119 0.181* 0.415**
Bulk density 1 0.531** -0.074 -0.202* -0.424**
Breaking strength 1 -0.063 -0.491** -0.579**
Color L 1 -0.321** -0.218**
Color a 1 0.806**
Color b 1

** Significant at p<0.01; *Significant at p<0.05.

Download Excel Table
Appearance and color of vacuum-puffed Yukwa

. 1 showed the appearance of vacuum-puffed Yukwa influenced by pellet heating time. Similar with the results of Shen et al. (2011), some burnt points and irregular surface shrinkage were found on the surfaces of Yukwa samples. The negative effect of extending the pellet heating time was the darker burnt points in the surface of Yukwa samples.

fep-19-3-250-g1
Fig. 1. Images of vacuum-puffed Yukwa influenced by pellet heating time. A, 1.00 min heating time; B, 1.33 min heating time; C, 1.67 min heating time; D, 2.00 min heating time; E, 2.33 min heating time; F, 2.67 min heating time; G, 3.00 min heating time; H, 3.33 min heating time; I, 3.67 min heating time; J, 4.00 min heating time, respectively.
Download Original Figure

Color values affected by pellet heating time were given in Table 2. Significant differences (p<0.05) were found in color values of vacuum-puffed Yukwa obtained at different pellet heating time. Depending on different pellet heating time, color values ranged from 74.73 to 80.68 for lightness, 0.04 to 6.88 for redness, and 3.52 to17.56 for yellowness. The highest a value (6.88) and b value (17.56) were obtained at pellet heating time of 4.00 min. The increase in pellet heating time tended to the decrease in redness of vacuum-puffed Yukwa. Extending pellet heating time increased the yellowness of all products, except 3 min heating time. The more expanded product would give more bright color due to air cells rather than dull color (Altan et al., 2008). The increase in redness of samples prepared by autoclaving or combination method may be resulted from occurrence of brown reaction due to polymerization of endogenous phenolic compounds during autoclaving and from Maillard reaction during infrared and microwave heating (Baik & Ullrich, 2008)

Table 2. Changes in color value of vacuum-puffed Yukwa affected by pellet heating time
Pellet heating time (min) L a b
1.00 80.68±3.25d 0.15±0.22a 3.52±1.69a
1.33 78.95±3.20bcd 0.04±0.23a 4.68±2.05a
1.67 77.55±3.42b 0.36±0.72ab 7.56±3.47b
2.00 79.41±2.58cd 0.47±0.44ab 8.44±2.13b
2.33 77.92±2.79bc 0.85±0.76b 8.69±3.20b
2.67 77.45±3.65b 1.63±1.29c 11.02±3.15c
3.00 79.67±2.73d 0.78±0.79b 10.65±2.99c
3.33 79.82±2.95d 2.02±1.49c 12.73±3.07d
3.67 79.04±2.25bcd 4.17±1.57d 16.48±1.60e
4.00 74.73±3.12a 6.88±1.68e 17.56±2.68e

Values are Mean±SD of ten repeats

Values with different letters in the same rank are significantly different by multiple range test (p<0.05).

Download Excel Table
Expansion ratio affected by pellet heating time

Fig. 2 showed the expansion ratio of vacuum-puffed Yukwa affected by pellet heating time. The expansion ratio of vacuumpuffed Yukwa significantly increased as the pellet heating time increased from 1.00 to 3.33 min, but decreased significantly when the pellet heating time was over 3.33 min. The lowest expansion ratio (2.95) was obtained from pellet heating time of 1.00 min. No significant difference was found on expansion ratio of vacuum-puffed Yukwa when pellet heating time was 2.33, 2.67, 3.00 and 3.67 min, respectively. The increase in expansion may be attributed to gelatinization that occurred during the heating of waxy rice pellet. As the heating time increased, more energy is obtained for starch gelatinization. Short residence time in the vacuum puffing machine probably does not allow the waxy rice pellet to Complete gelatinization. Meanwhile, at longer heating time, the waxy rice pellet would be too hard and thus this would prevent the sudden vapor pressure release and caused decrease in expansion. Similar reports on barley microwave puffing were also observed by Altan (2014).

fep-19-3-250-g2
Fig. 2. Expansion ratio of vacuum-puffed Yukwa affected by pellet heating time.
Download Original Figure
Density affected by pellet heating time

Density is a parameter that is controlled by the degree of expansion and is measured routinely for quality control purposes. Density of vacuum-puffed Yukwa ranged from 0.006 to 0.047 g/cm 3 . The heating in the vacuum puffing machine caused the evaporation of water which built up pressure inside the waxy rice pellet and this caused expansion of the waxy rice pellet creating a porous structure. There was a significant effect of the pellet heating time on bulk density of vacuum-puffed Yukwa. The lowest bulk density value (0.112 g/cm 3 ) was obtained at 3.33 min heating time, whereas the highest value (0.208 g/cm 3 ) was obtained at 1 min. The density of vacuumpuffed Yukwa significantly decreased as the pellet heating time increased from 1.00 to 3.33 min, but increased significantly when the pellet heating time was over 3.33 min. The bubble growth, which was driven by the pressure difference between the interior of the growing bubble and atmospheric pressure resisted by the viscosity of the bubble wall, dominated the density at longer pellet heating time. This was agreed with the study on rice-based expanded snacks from Ding et al. (2005).

Breaking strength affected by pellet heating time

The breaking strength of vacuum-puffed Yukwa is a perception of the human being and is associated with expansion and cell structure of the product (Meng et al., 2010). The effect of the pellet heating time on the breaking strength of vacuum-puffed Yukwa is illustrated in Fig. 4. The breaking strength of vacuumpuffed Yukwa varied between 5.22E + 04 and 4.26E + 05. The breaking strength of vacuum-puffed Yukwa at 1 min heating time was significantly higher than that of other products indicating the extent of structural changes. This may be due to the rheological behavior of the waxy rice pellet influenced by pellet heating time. Short heating time probably does not allow the pellet to Complete gelatinization, resulting in hard texture of Yukwa products. The breaking strength tended to decrease as the pellet heating time increased. The lowest breaking strength was obtained at 2.67 min heating time. Similar reports were also reported by Altan (2014).

fep-19-3-250-g3

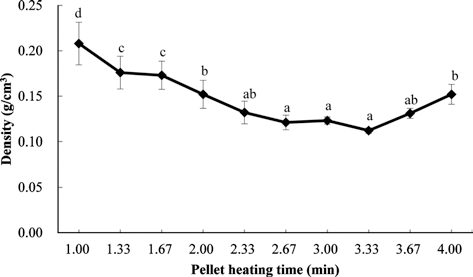

Fig. 3. Density of vacuum-puffed Yukwa affected by pellet heating time.
Download Original Figure
fep-19-3-250-g4
Fig. 4. Breaking strength of vacuum-puffed Yukwa affected by pellet heating time.
Download Original Figure

Conclusions

An acceptable vacuum-puffed Yukwa snack can be produced by changing the waxy rice pellet heating time in the vacuum puffing machine. The results demonstrated that the physical properties of vacuum-puffed Yukwa were strongly influenced by the pellet heating time. The work made it clear that the waxy rice pellet should be heated for 3.33 min when the moisture content was 25%. Overall, vacuum puffing method can be used as a promising alternative method for Yukwa production by optimizing its manufacturing process.

REFERENCES

1.

Altan A. Effects of pretreatments and moisture content on microstructure and physical properties of microwave expanded hull-less barley. Food Res. Int. 2014; 56 p. 126-135.

2.

Altan A, Mccarthy KL, Maskan M. Evaluation of snack foods from barley-tomato pomace blends by extrusion processing. J. Food Eng. 2008; 84 p. 231-242.

3.

Ascheri JLR, Ciacco CF, Riaz MN, Lusas EW. Efectode la formulación sobre la expansion y viscosidad de “snacks” (pellets) producidos por extrusión termoplastica. Acta Aliment. 1995; 12 p. 111-118.

4.

Baik BK, Ullrich SE. Barley for food: characteristics, improve- ment, and renewed interest. J. Cereal Sci. 2008; 48 p. 233-242.

5.

Boischot C, Moraru CI, Kokini JL. Expansion of glassy amylopectin extrudates by microwave heating. Cereal Chem. 2003; 80 p. 56-61.

6.

Choi YH, Yun EY, Kang MY. Comparison of some characteristics relevant to Yukwa (fried rice cookie) made by different processing conditions. J. East Asian Soc. Dietary Life. 2000; 10 p. 71-76.

7.

Ding QB, Ainsworth P, Tucker G, Marson H. The effect of extrusion conditions on the physicochemical properties and sensory characteristics of rice-based expanded snacks. J. Food Eng. 2005; 66 (3) p. 83-289.

8.

Lai HM, Cheng HH. Properties of pregelatinized rice flour made by hot air or gun puffing. Int. J. Food Sci. Tech. 2004; 39 p. 201-212.

9.

Lee MS, Kim MY, Chun SS. Quality characteristics of Yukwa prepared with Rubus coreanus Miquel extract using different puffing process methods. Korean J. Food Cookery Sci. 2008; 24 p. 38 -391.

10.

Limón-Valenzuela V, Martínez-Bustos F, Aguilar-Palazuelos E, Caro-Corrales JJ, Zazueta-Morales JJ. Physicochemical evaluation and optimization of enriched expanded pellets with milk protein concentrate. Cereal Chem. 2010; 87 p. 612-618.

11.

Meng X, Threinen D, Hansen M, Driedger D. Effects of extrusion conditions on system parameters and physical properties of a chickpea flour-based snack. Food Res. Int. 2010; 43(2) p. 650-658.

12.

Shen XJ, Gil SK, Ryu GH. Effects of waxy rice moisture content and rate of CO2 injection on characteristics of extruded pellets and vacuum-puffed Yukwa (a Korean traditional snack). Cereal Chem. 2013; 90(2) p. 57-163.

13.

Shen XJ, Han JY, Ryu GH. Effects of the addition of green tea powder on the quality and antioxidant properties of vacuum-puffed and deep-fried Yukwa (rice snacks). LWTFood Sci. Technol. 2014; 55(1) p. 362-367.

14.

Shen XJ, Norajit K, Ryu GH. Effects of pellet moisturecontent on the physical properties of vacuum-puffed Yukwa. Food Eng. Prog. 2011; 15 p. 262-268.

15.

Shin DH, Kim MK, Chung TK, Lee HY. Shelf-life study of Yukwa (Korea traditional puffed rice snack) and substitution of puffing medium to air. Korean J. Food Sci. Technol. 1990; 22 p. 266-271.

16.

Yang S, Kim MY, Chun SS. Quality characteristics of Yukwa prepared with mugwort powder using different puffing process. Korean J. Food Cookery Sci. 2008; 24 p. 340-348.

17.

Yu JH, Ryu GH. Development of vacuum puffing machine for non-deep fried Yukwa and its puffing characteristics by process variables. Food Eng. Prog. 2010; 14 p. 193-20.
