The Role of Glucosides on the Thermal Stability of Color Produced by Anthocyanins from Red Cabbage

J. Michelle Lee1, Moonsoo Jin2,*
Author Information & Copyright
1Lexington High School, USA
2Department of Radiology, Weill Cornell Medical College, USA
*Corresponding author: Moonsoo Jin, Department of Radiology, WeillCornell Medical College, New York, NY 10065, USA Tel: +1-646-962-6225; Fax: +1-646-962-0267 msjinweill@gmail.com

© Korean Society for Food Engineering All rights reserved. This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: Mar 25, 2015; Revised: Apr 24, 2015; Accepted: May 19, 2015

Abstract

Carbohydrate derivatives of cyanidin, a class of anthocyanin pigments, are major component of red cabbage, which is responsible for the characteristic reddish color. The color of cyanidin derivatives is quite stable against heat, and here we aimed to identify the chemical component of glucoside-derivatives of cyanidin which is responsible for the thermal stability. By comparing the thermal stability of color from unmodified cyanidin and cyanidin-3,5-diglucoside with the color of cyanidin derivatives from red cabbage, we found that the glucoside modification confers the thermal stability. We believe that our finding will contribute to the preparation of heat-resistant anthocyanin pigments for food coloring and other applications.

Keywords: anthocyanins; glucoside; thermal stability; red cabbage

Introduction

Anthocyanin is a class of natural pigment molecules typically found in flowers, leaves, and stems of trees as well as in fruits. Anthocyanins produce red, purple and blue colors depending upon the molecular structure and pH (He & Giusti, 2010).

Chemically, anthocyanins are sugar-modified (glycosylated) version of anthocyanidins. The sugar-free anthocyanidins are main structure responsible for the color formation of anthocyanins (Castañeda-Ovando et al., 2009).

According to the recent trend of avoiding artificial compounds in food coloring, anthocyanins are gaining increasing attention as the natural source of food coloring (Francis, 1989). In addition, the potent anti-oxidant activity of anthocyanin molecules are investigated as therapeutics as well as food additives with potential benefits against a variety of diseases including cancer (Sehitoglu et al., 2014) and inflammatory bowel diseases (Sodagari et al., 2015).

In this regard, maintaining the stability of anthocyanin structures during food production and processing is becoming an important subject. Different anthocyanidins and their sugarmodified anthocyanins have been tested for their stability upon heat and pH (Castañeda-Ovando et al., 2009). Several studies have shown that the functional groups attached to the core anthocyanidin structure affects stability of the molecule and its color.

The sugar modification has been considered as a critical determinant of anthocyanin stability. Previous studies have shown that sugar-modification of anthocyanidin confers stability to the core molecule (Osami et al., 2009; Zhao et al., 2014). However, a recent study reported that sugar-modification might have an adverse effect of the core anthocyanidin stability (Rakić et al., 2014). Therefore, further studies are warranted to clarify the role of sugar modification on the structural stability of anthocyanidin core molecule.

Anthocyanins are the main color-producing components in extracts of red cabbage. A previous study reported the composition of anthocyanins in red cabbage using liquid chromatography mass-spectrometry. The predominant anthocyanins were cyanidin-3-diglucoside-5-glucosides with diverse acylation patterns (McDougall et al., 2007).

In this study, we tested the thermal stability of the color of naturally extracted cyanidin derivatives from red cabbage and compared it with those of unmodified cyanidin and cyanidin- 3,5-diglucoside structures. Our observation supports the idea that sugar modification generally confers stability to the core anthocyanidin molecular structure.

Materials and Methods

Material preparation

Anthocyanin mixtures from red cabbage (Cat # L301, MSC Corp., Busan, Korea) and purple sweet potato (Cat # L509, MSC Corp., Busan, Korea) are purchased and prepared as a stock at 50.0 mg/L solution (pH 5). Baking powder (Arm & Hammer, Princeton, NI, USA) is used to make basic solution (pH 9). As a controls, Cyanine Chloride (Cas # 528-58-5 ChromaDex, Irvine, CA, USA) and Cyanine 3,5-diglucoside (Cas #2611-67-8, ChromaDex, Irvine, CA, USA) were purchased and prepared as a stock at 50.0 mg/L solution (pH 5).

Heat stability assay

To test the heat stability, the lowest color changing temperatures were visually observed using anthocyanin mixtures from red cabbage and purple sweet potato and 2 control anthocyanins (Cyanine Chloride and Cyanine 3,5- diglucoside). Using heat block, 1/100 diluted anthocyanins from the stock solution (50.0 mg/L in stock and 0.5 mg/L in working) were incubated for 10 min at each temperature. Temperature range for incubation is used from 25℃ to 65℃. To make sure the anthocyanins heat-treated fully, 10 micro liter of anthocyanin solutions in 0.7 mL tube are used.

UV Absorption measurement

To quantitate the color change, UV absorbance is measured for anthocyanin mixtures after heat treated at each different temperature. Spectrometer (Ultra Spec 7000, GE Healthcare, Pittsburgh, PA, USA) is used for scanning the wavelength from 400 nm to 700 nm of solution and analyzing the data after incubation.

Result and Discussion

Structure of red cabbage anthocyanin derivatives

A common structure of red cabbage anthocyanins are shown in Fig. 1A. A previous study demonstrated that the major anthocyanin components from red cabbage are cyanidin-3- diglucoside-5-glucosides (Fig. 1B). To compare the thermal stability and the role of sugar modification on thermal stability of cyanidin, we studied two additional molecules with core cyanidin structures, such as unmodified cyanidin (Fig. 1C) and cyanidin-3,5-diglucoside (Fig. 1D). In addition to the red cabbage, the major component of anthocyanins in purple sweet potato is glycosylated cyanidins (Montilla et al., 2011) Therefore, we included anthocyanins from purple sweet potato as another glycosylated form of cyanidin for stability experiments.

fep-19-2-172-g1
Fig. 1. Molecular structure of red cabbage anthocyanin A: Common structures of anthocyanins from red cabbage. B: Major component of anthocyanin from red cabbage, cyanidin acylglycoside. C: Controls without glycosylation, cyanidin. D: Controls with glycosylation, cyanidin 3,5-Diglycoside.
Download Original Figure
Thermostability of various cyanidin derivatives

Thermostability of various red cabbage anthocyanin structures were investigated in acidic condition (pH 5) by incubating in different temperatures and visually observing the color disapprearance and also by analyzing the absorption spectra. As expected, the anthocyanins from red cabbage (Fig. 1B) did not show remarkable color change in any temperature tested based upon the UV absorbance spectra (Fig. 2A). Visual inspection also confirmed UV spectra observation (Fig. 2B).

fep-19-2-172-g2

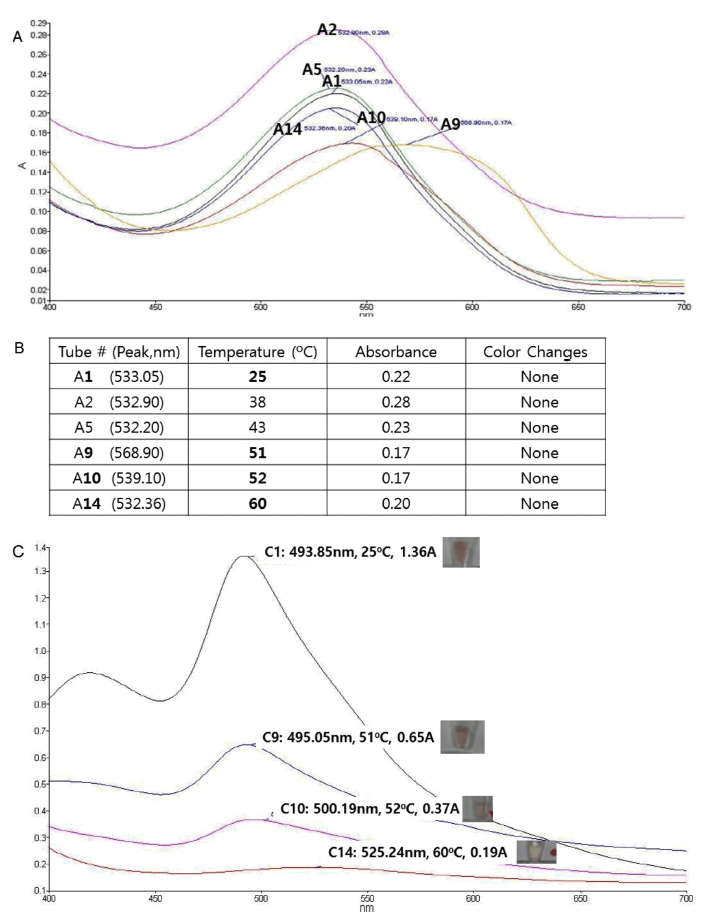

Fig. 2. Absorbance change of red cabbage anthocyanins by temperature A: To measure the color changes, absorbance spectra was measured for each heat-treated anthocyanin from red cabbage. B: Absorbance data from A is summarized with visually inspected color change data. C: Absorbance and color changes were measured for cyanidin.
Download Original Figure

In contrast, unmodified cyanidin (Fig. 1C) showed color change at 58 to 60 ℃ in acidic condition as observed by both UV spectra measurement and direct visual inspection (Fig. 2C), showing that the core cyanidin structure is thermosensitive, and the modification of cyanidin confers thermostability of red cabbage anthocyanins.

To test whether the sugar modification confers thermostability to the core cyanidin structure, we tested the color change of cyanidin-3,5-diglucoside (Fig. 1D) upon temperature change in acidic condition. As shown in Table 1, cyanidin-3,5- diglucoside did not change its color upon heating, demonstrating that the glucoside modification on both 3 and 5 position of cyanidin can confer the thermostability.

Table 1. Color changes of red cabbage anthocyanin by temperature.
Temparature (°C) Acidic (pH 5) Basic (pH 9)
Red Cabbage Purple Sweet Potato Cyanidin Cyanidin 3,5- Diglycoside Red Cabbage Purple Sweet Potato Cyanidin Cyanidin 3,5- Diglycoside
25 Red Wine Purple Pink Red Green Cyan Green Blue
38 Red Wine Purple Pink Red Green Cyan Green Blue
40 Red Wine Purple Pink Red Green Cyan Green Blue
42 Red Wine Purple Pink Red Green Cyan Green Blue
44 Red Wine Purple Pink Red Green Cyan - Blue
46 Red Wine Purple Pink Red Green Cyan - Blue
48 Red Wine Purple Pink Red Green Cyan - Blue
50 Red Wine Purple Pink Red Green Cyan - Blue
52 Red Wine Purple Pink Red Green Cyan - Blue
54 Red Wine Purple Pink Red Green Cyan - Blue
56 Red Wine Purple Pink Red Green Cyan - Blue
58 Red Wine Purple Pink Red Green Cyan - Blue
60 Red Wine Purple - Red Green Cyan - Blue
62 Red Wine Purple - Red Green Cyan - -
64 Red Wine Purple - Red Green Cyan - -
66 Red Wine Purple - Red Green Cyan - -

* Means no color (white and no particular color shown).

Download Excel Table

As summarized in Table 1, this trend was also observed in basic condition (pH 9). In basic condition, unmodified cyanidin and cyanidin-3,5-diglucoside were somewhat less stable than in acidic condition, as the color-changing temperatures were decreased compared with acidic condition.

Nonetheless, the order of stability (cyanidin from red cabbage > cyanidin-3,5-diglucoside > cyanidin) remained same as in acidic condition.

Rakić et al. (2014) showed that cyanidin-3-glucoside reduces thermal stability of core anthocyanidin molecule. In our study, however, we observed that cyanidin-3,5-diglucoside confers thermostability compared with unmodified cyanidin. The main difference is the sugar modification at 5-position of core cyanidin molecule. Further studies are warranted whether the position 5 modification plays a key role in thermostability of anthocyanins.

In summary, our study confirms and further supports the idea that sugar modification stabilizes core anthocyanidin structure against thermal exposure. We believe that this finding will help manufacturers develop stable, natural pigments which can be utilized for safe food coloring and other medical application of anthocyanins.

Conclusion

We compared the thermal stability of color from unmodified cyanidin and cyanidin-3,5-diglucoside with the color of cyanidin derivatives from red cabbage. While it has been generally believed that glucoside modification increases anthocyanin thermal stability, a previous study reported that cyanidin-3-glucoside reduces thermal stability of core cyanidin molecule. In contrast to their study, however, our study shows that glucoside modification of cyanidin (cyanidin-3,5-diglucoside) confers thermostability compared with the unmodified cyanidin. Therefore, our results clearly demonstrate that the glucoside modification increases the thermal stability of cyanidin core molecule.

REFERENCES

1.

Castaneda-Ovando A, Pacheco-Hernandez MdL, Paez-Hernandez ME, Rodriguez JA, Galan-Vidal CA. Chemical studies of anthocyanins A review. Food Chem. 2009; 113:859-871.

2.

Francis FJ. Food colorants anthocyanins. Crit. Rev. Food Sci. Nutr. 1989; 28:273-314.

3.

He J, Giusti MM. Anthocyanins natural colorants with health-promoting properties. Annu. Rev. Food Sci. Technol. 2010; 1:163-187.

4.

McDougall GJ, Fyffe S, Dobson P, Stewart D. Anthocyanins from red cabbage – stability to simulated gastrointestinal digestion. Phytochemistry. 2007; 68:1285-1294.

5.

Montilla EC, Hillebrand S, Winterhalter P. Anthocyanins in purple sweet potato (Ipomoea batatas L) varieties. Fruit Vegertable Cereal Sci Biotechnol. 2011; 5:19-24.

6.

Osmani SA, Hansen EH, Malien-Aubert C, Olsen CE, Bak S, Moller BL. Effect of glucuronosylation on anthocyanin color stability. J. Agric. Food Chem. 2009; 57:3149-55.

7.

Rakic VP, Ota AM, Bornšek SFM, Miljkovic MN, Sokolovic DT, Ulrih NEP. The colour and stability of cyaniding and cyanidin3-o-β-glucopyranoside. Adv Technol. 2014; 3:5-9.

8.

Sehitoglu MH, Farooqi AA, Qureshi MZ, Butt G, Aras A. Anthocyanins targeting of signaling networks in cancer cells. Asian Pac. J. Cancer Prev. 2014; 15:2379-2381.

9.

Sodagari HR, Farzaei MH, Bahramsoltani R, Abdolghaffari AH, Mahmoudi M, Rezaei N. Dietary anthocyanins as a complementary medicinal approach for management of inflammatory bowel disease. Expert Rev Gastroenterol Hepatol. 2015; 13:1-14.

10.

Zhao CL, Chen ZJ, Bai XS, Ding C, Long TJ, Wei FG, Miao KR. Structure-activity relationships of anthocyanidin glycosylation. Mol. Divers. 2014; 18:687-700.
